Each Kestrel RT800 is Up to 80-90 percent assembled and factory packed for shipping (some assembly, tuning/cable routing still required)
Please allow an additional 2 to 3 days time before your tracking number shows movement
IMPORTANT: READ THIS PRIOR TO ORDERING SALE FAQ |
Bikes come up to 90 percent assembled. How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit |
A Kestrel Selected by Outside Magazine as Gear of the Year - click here for the article
NOTE: Special Sale Priced Kestrels direct from Kestrel. Full Kestrel Factory Warranty. Race Proven Highest Quality Carbon Superb Ride The RT800 uses Kestrel's unmatched carbon fiber know-how for a superior riding experience. Superb stiffness, superior strength, durability and Kestrel's legendary aerodynamic geometry lend to a road-smoothing ride with precise handling and efficient power transfer. Size-specific tuning optimizes the ride for every size, so you get the same precise handling with a responsive feel regardless of how big you are or where you ride. Highest Technology * Constantly varying tube sections and optimized shapes throughout, for increased torsional rigidity and bottom bracket stiffness * Full Internal cable routing Frame weight = 2.42lbs* approx (no pedals/reflectors) Factory Direct Pricing The Bikesdirect.com Factory Direct price is only $2,299 for the whole bicycle |
SL Hybrid HM Carbon Fiber - Structurally optimized one-piece modular Monocoque main triangle, Reinforced bottom bracket and chainstays for power transfer, 2xH2O bottle mounts, replaceable derailleur hanger, Approx Frame weight = 2.42lbs | |
Fork | Kestrel EMS SL Alloy STEERER, co-engineered with the frame for balanced handling feel and precision |
Derailleurs | Shimano Ultegra 6700, 10 Speed (20 gears total) rear and Shimano Ultegra 6700, brazeon mount front |
Shifters | Shimano Ultegra 6700, 10 Speed STI |
Brakes | Shimano Ultegra 6700, Dual Pivot |
Hubs | Vuelta Team SL Precision Bearing Black Anodized |
Rims | Vuelta Team SL Aluminum with CNC brake surface |
Crank | Shimano Ultegra 6700, 53/39T, machined, ramped aluminum rings |
Bottom Bracket | Shimano Ultegra 6700, External Sealed Precision Bearing |
Cassette/chain | Ultegra 10-Speed Cassette 12-27T |
Saddle | Selle SAN MARCO PONZA TT |
Seatpost | Kestrel RT EMS Fluid Design Carbon fiber (aero profile) |
Stem | Ritchey PRO 4Axis 31.8 clamp, 1.125 inch steerer |
Headset | FSA ORBIT Z CARBON Integrated, 1.125 inch steerer |
Handlebars | Ritchey PRO 31.8mm (40/42/44 Proportional Sized
to Factory
Specs - No choice - check out www.bikeisland.com if you want to buy a wider or narrower bar) |
Pedals | No Pedals included - buy some at www.bikeisland.com and get free shipping too |
Tires | Vittoria Diamante Pro 700x23c kevlar bead, presta valve tubes (Max 120psi) |

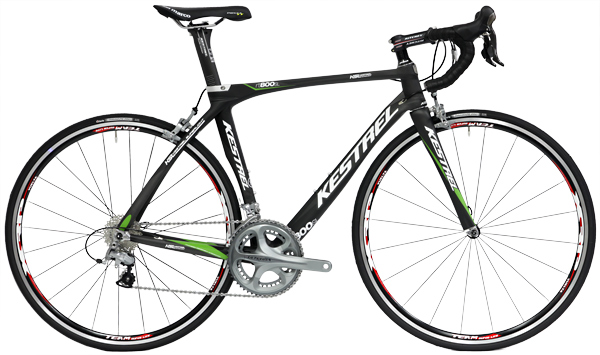

Color | Green+White+Black Carbon Fiber Weave under clear coat (as shown) |
Sizes | 48cm, 51cm, 53 cm, 55 cm, 57 cm, 59, 62cm Geometry Sizing Chart |
