Very Limited Qtys
This shipment is selling out very quickly, grab your Kilo WT5 now
If your size has sold out - please join our newsletter Click HERE for updates on future shipments

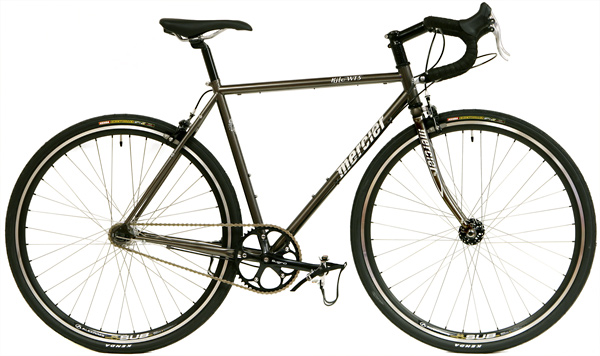

Mercier 2011 Kilo WT5 Gallery of DlGray
Think of this as a Kilo TT on steroids, a Kilo TT that's a turbo-charged, sport SUV. With this Kilo WT5 you know Wide Tires Fit up to 1.75"x29 and 700x45c. With front and rear braze-ons, you can rack it up and really haul.
This is one of the best all-season bikes you can possibly ride. Put on some 1.75" x 29er tires and run over just about anything, anytime and anywhere. Get some knobbier cross tires on there and some folks call that a "monstercross" bike.
With five gears at your fingertips, you can keep on trucking over just about any hill or dale. Your buddies on their single gear ratio fixies will wonder what is up when you pull away from them and leave them OTB.
Gear Ratio of S-RF5(W) Five Speed Internal gear hub | Click HERE to see the Sturmey-Archer Specs
• Overall Range - 256%
• Gear 1 - 62.5% (-)37.5%
• Gear 2 - 75% (-)25% (Gear 1 + 20%)
• Gear 3 - 100% Direct Drive (Gear 2 + 33%)
• Gear 4 - 133.3% (+)33.3% (Gear 3 + 33%)
• Gear 5 - 160% (+)60% (Gear 4 + 20%)
Please Compare to Bianchi and Surly at $900+ but those don't have 5 speed rear hubs...
Direct comparison to any high quality wide-tired singlespeed bike will showcase the fantastic frame quality. At $479 delivered, there is no better value in it's class
You'll have to look hard to try to find a bike with specs as good as the WT5 for even double the price.
Extremely limited shipment of these
fun, durable and versatile track bikes
We
are blowing these out for Mercier as a special promotional deal
Custom
Butted, Multishaped and Tapered Reynolds 520 Chromoly Steel frames.
Custom flat crown Track fork with "Wide Tires Fit" custom lugged crown. (Fits up to 45x700c tires/ 1.75"x29")
WT5 Upgrades from the regular Kilo TT:
Sturmey Archer 5 Speed, Internal Gear, freewheel hub Click HERE to see the Sturmey-Archer Specs
Pro-grade Forged Aluminum Sugino Track crankset (130 BCD)
Custom Alex SUB 30mm V-Aero section wheelset - Wheelset alone is worth $350 to $400
Precision Sealed Bearing Hi-flange Hubs
Tektro Road levers + R556 front/rear brake - Valued at $80
Custom paint color Gallery of DlGray
Fast rolling, wide and comfortable, Kenda tires
VERSATILE FEATURES
Drilled for
front and rear brakes. Bonus front/rear brakes and levers included
Rack
Braze-ons and Rear Eyelets. Add a rear rack =
great commuter
Internal Gear
rear freewheel hub. Virtually All the gears you need without the fuss of derailleurs.
Click HERE to see the Sturmey-Archer Specs
Most riders fit the size they clear the standover by at least 1 to 1.5
inches
| Frame |
Stem Reach / Rise |
Bar (cm) |
Crank (mm) |
| 49cm |
90mm / 17 deg. |
41cm |
165mm |
| 53cm |
110mm / 17 deg. |
41cm |
165mm |
| 56cm |
110mm / 17 deg. |
41cm |
165mm |
| 59cm |
110mm / 17 deg. |
41cm |
165mm |
| 62cm |
110mm / 17 deg. |
41cm |
170mm |
GEOMETRY / MEASUREMENTS
|
| Frame Size >>> |
49cm |
53cm |
56cm |
59cm |
62cm |
ST (C-T):
Inches / mm
|
19.3 / 490.0 |
20.9 / 530.0 |
22.0 / 560.0 |
23.2 / 590.0 |
24.4 / 620.0 |
TT (C-C):
Inches / mm
|
20.7 / 526.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
TT (Effec.):
Inches / mm
|
20.8 / 529.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
HT Angle:
degrees |
72.5° |
73.0° |
73.5° |
74.0° |
74.0° |
HT Length:
degrees |
3.3 / 83.0 |
4.3 / 109.0 |
5.4 / 136.0 |
6.4 / 163.0 |
7.7 / 196.0 |
ST Angle:
degrees |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
BB Drop:
Inches / mm |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
CS Length:
Inches / mm |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
Wheel Base:
Inches / mm |
38.0 / 965.7 |
38.1 / 966.6 |
38.5 / 978.6 |
38.9 / 987.6 |
39.7 / 1009.1 |
S.O. Height*:
Inches / mm |
29.5 / 748.5 |
30.7 / 780.5 |
31.8 / 807.9 |
32.9 / 835.2 |
34.1 / 865.3 |
Fork Length:
Inches / mm |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
Fork Rake:
Inches /
mm |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
| *Measurements from bikes with 700c x 28 tire taken from to middle of the top tube to the ground |
Most riders fit the size they clear the standover by at least 1 to 1.5
inches
If you are between sizes, keep in mind the smaller one will have lower handlebars and more agile handling. The larger one will have higher handlebars but less straddle room. Your personal preferences will determine your size. The final choice is up to you.
Available - Limited Qtys
These shipments sell out very quickly. ORDER WHEN YOU CAN
NOTE: PLEASE TIGHTEN YOUR LOCKRINGS, CRANKS, PEDALS ETC BEFORE AND AFTER EVERY RIDE. Stripped threads, cranks, pedals etc are due to those parts not being tightened enough by the rider and are not covered by warranty
An interesting track bike fact:
The Kilometre TT or 'Kilo' is three and a half laps long and is considered by many to be the most painful event in track racing. From a held start, the rider will sprint at full effort for a little over a minute.
