Frame |
New Semi-Compact Geometry, Kinesis Handmade
Double-Butted Aluminum Main Frame with replaceable derailleur
hanger and 2xH2O brazeons
(Due to incredibly high demand, Motobecane USA is building these frames with either 6000 or 7000 series aluminum alloy. Specs, weight, performance engineered to be the same)
HT lengths 47/50/52/54/56/58/60/62/64CM=115/130/140/150/170/190/210/230/250mm |
Fork |
Kinesis StraightBlade 12K
CARBON Fiber 1.125 inch steerer
47/50/52/54/56/58/60/62/64CM=203/218/228/238/258/278/298/318/338mm |
Crankset |
FSA Vero Aluminum, triple ring
50/39/30T
Crank 170/172.5/175mm for 47-52/54-56/58-64CM |
BottomBracket/ Headset |
Sealed
cartridge BB Steel Cups w/Additional water seals, JIS Square, Chromo Spindle,68mm Shell x 116mm Spindle / Cane Creek 1.125" Threadless headset |
Pedals |
BONUS Clipless Road pedals (fits two-bolt sole pattern shoes) |
Front
Derailleur |
Shimano
Sora 3403, BAND-TYPE 31.8MM FOR TRIPLE |
Rear
Derailleur |
Shimano Tiagra RD-4500, TIAGRA GS 9-SPEED (27 gears total) |
Shifters |
Shimano ST-3400 SORA (27 gears total)(integrated with brake levers) |
Cassette/Freewheel |
Shimano CS-HG61, 9-SPEED 11-12-13-14-16-18-21-24-28T
(27 gears total) |
Chain |
KMC X9 SuperNarrow 9spd |
Hubs |
XRP COMP Vuelta, forged
aluminum, Contact Labyrinth Sealed Ball Bearings and Quick Release front and rear |
Spokes |
Stainless
Steel, black finish |
Rims |
XRP COMP Vuelta, 6061T6 Double Wall
aluminum with machined brake track |
Tires |
Continental UltraSport
High pressure
road 700c, presta valve tubes |
Brakes |
Tektro R520 Aluminum black finish |
Brake
Levers |
Shimano SHIFT/BRAKE LEVER, ST-3400 SORA |
Handlebar |
RITCHEY BIOMAX OE (C:31.8) ALLOY(6061) D.B. BUTTED 400/420/440mm FOR 47-52/54-56/58-64CM,D/R:130/82mm |
Stem |
RITCHEY COMP 4 AXIS 84/6D (C:31.8)-28.6 ALLOY(6061) EXT: (-6°) 90/100/110mm FOR 47-52/54-56/58-64CM |
Tape/Grip |
Black
cork |
Saddle |
SKYE Racing |
Seat
Post |
RITCHEY OE 2 BOLTS, 6061 ALLOY, 27.2 X 350MM |
Seat
Clamp | Machined Aluminum Alloy with bolt |
Sizes |
47cm, 50cm 52cm 54cm
56cm 58cm 60cm
62cm 64cm
Geometry Sizing Chart |
Colors |

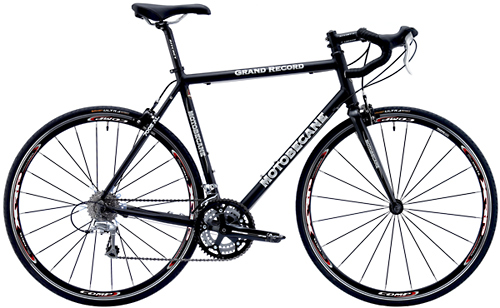

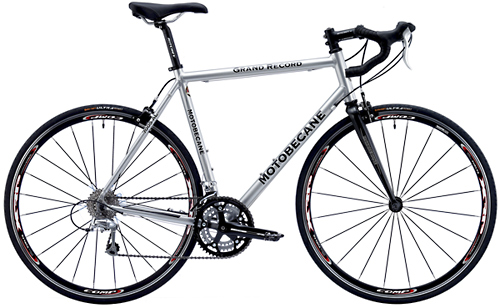

MatteBlack or MatteSilver as shown above |
Our
low price is $649.95 Compare at $900 for
Trek 1.5
Bikes come up to 90 percent assembled. How much Assembly? CLICK
HERE for sample assembly instructions and videos
CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit
|
