Specs | Geometry Sizing Chart | Detailed Pics (Hub QR levers may differ from photos)
NOTE: This bike is a MY2012 with MY2012 SRAM Red parts. Non-Yaw Front Derailleur. This is not the newly released MY2013 SRAM Red
According to James Huang Editor at Bikeradar.com: "I confirmed in person during the event with both the SRAM global road media manager and the US road media manager and yes, the new Red group is absolutely, positively, unquestionably a MY2013 group. It's been referred to as a 2012 group (even in some of SRAM's own marketing materials) only because the release is coming so early. SRAM actually prefers to just reference it as "new Red" vs "old Red".... honestly no real debate to the topic. It's a MY2013 product, plain and simple.)" http://www.bikeradar.com/news/article/sram-red-groupset-2013-details-leaked-32565/
IMPORTANT: READ THIS PRIOR TO ORDERING Before Ordering, Please Check Sizing HERE | Most riders choose a size they can clear the standover by at least 1.5 inches |
2012 SRAM RED, 20 Speed |
|
This
bike comes 90%
assembled. How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit |
The new Le Champion Inferno bikes draw upon some of the same high-technology used in the top-of-the-line Immortal carbon fiber frames. We have sold thousands of Motobecane Immortals. This Immortal Carbon Fiber frame has the best quality and design in a carbon fiber frame we have seen. Customers who own Immortals send friends and family to buy these excellent road bikes all the time. Here is what just a few magazines say: |

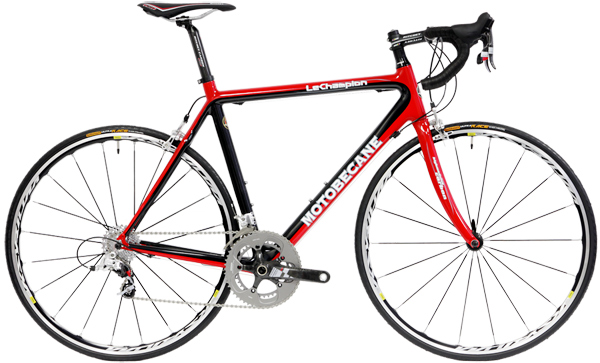

NEW Le Champion CF Limited Road Bike Factory Direct Price Ships Signature Req'd FEATURES: Professionally Tested with Top Reviews Shopping Comparison Guide How much Assembly needs to be done? |
Limited Edition paint scheme, Monocoque High Modulus 12k Weave Carbon Fiber with replaceable derailleur hanger, 2x H2O bosses. Headtube lengths 51/54/56/58/61 = 120/130/155/180/200 | |
Fork | High Modulus Monocoque 12k Carbon Fiber,Threadless Aluminum Crown + Steerer 1.125 inch, 51/54/56/58/61=218/228/253/278/298, 45mm offset |
Headset | FSA Orbit C Angular Contact Bearing,Threadless 1.125 inch |
Derailleurs | SRAM RED 10 Speed braze-on front and |
Shifters/Levers | SRAM RED 10 Speed, Carbon blade (20 Speed total) |
Brakes | SRAM RED cold forged aluminum calipers, SRAM by SwissStop pads |
Hubs | Mavic Ksyrium Elite with QRM Bearings (as shown) |
Rims | Mavic Ksyrium Elite (as shown) |
Crank/BottomBracket | SRAM RED Carbon arms, Machined Aluminum 53/39T Rings, 130BCD/ GXP BlackBox External Ceramic Bearing Bottom Bracket |
Cassette/Chain | SRAM PG1070 10 Speed 11-28T |
Saddle | Ritchey PRO Streem Road Racing |
Seatpost | Ritchey PRO Carbon Fiber 31.6mm x 350mm |
Stem | Ritchey WCS 4-Axis Aluminum 1.125 inch steerer, 31.8mm clamp |
Handlebars | Ritchey WCS Butted Aluminum BioMax Ergo Bar, 31.8mm |
Pedals | +BONUS FREE Superlight Clipless Pedals (these fit shoes with a two-bolt "spd-type" sole, not spd-sl) |
Tires | Continental UltraRace, 700x23c (folding bead), Presta valve tubes |
Color | Red/Black Detailed Pics (Hub QR levers may differ from photos) |
Sizes | 51, 54, 56, 58, 61cm Click here for Geometry Chart (Center of BB to Top of SEAT TUBE / Seatpost Clamp/collar - just like Trek and Fuji) |
This
bike comes approx 90% assembled - We suggest you
take it to your local bike shop for final assembly & safety
checks |
