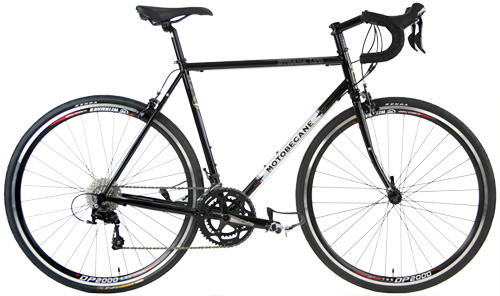

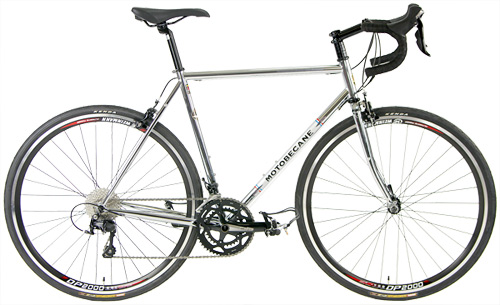

Super Commuter + Super Road - Dominate the Road: This High Grade Steel Strada road bike can do it all
Powerful Brakes, Fast Aero Profile rim wheelset (Worth $250), Plush+Durable Reynolds High Grade Steel frames, Custom Flat Crown CrMo bladed forks
Well equipped with 700x32c Tires. Capable of using tires as wide as 700x45c to dominate gravel roads or as narrow as 700x23c for maximum speed on your commute. Laugh and float over rough roads, chipseal and revel in your plush ride through virtually all road conditions.
Perfect
for the entry to sport level athlete wanting the amazing comfort of a
high grade steel
frame, coupled with the precision and comfort of a CrMo fork and dealing with a
budget. This model has compact cranks for even more hill-crushing performance.
SPECIAL SALE
Compare to Surly Straggler, Surly Pacer and Surly Cross Check type bikes at up to $1900 (including local taxes).
Your Strada LTD is Only $799 + FREE Ship 48 USA
The Strada LTD series bikes Feature
new high performance, super comfortable and highly durable Endurance Design Reynolds High Grade Steel frames. Reynolds High Grade steel = super plush ride. The Endurance design means higher headtubes for a bit more upright and comfortable riding positions.
FEATURES:
Custom Flat Crown Bladed CrMo forks for precise and comfortable riding
Shimano STI 2x11 Speed Drivetrain = Upright + Convenient Braking and Shifting in one location
SHIMANO
DERAILLEURS for quick reliable shifting
FSA Compact CRANKSET for best shifting and great for flattening hills
Fast Aero Profile WHEELSET with wide tires offers incredible ride quality
COMPARE TO: Surly, Salsa, Giant, TREK or Specialized at $1900+ local taxes
Sizing Guide
49 cm fits most 5'3" up to 5'5"
53 cm fits most 5'6" up to 5' 8"
56 cm fits most 5'9" up to 5' 11"
59 cm fits most 6'0" up to 6'2"
62 cm fits most 6'3" up to 6' 5"
This is a general guide, please consult the geometry chart.
If one is between sizes, go larger for longer arms/torso or higher bars. Smaller for short arms/torso or more aggressive fit.
Sizing is a personal preference, the final choice is up to you
More Questions about sizing? Email bd4salesteam@aol.com
GEOMETRY / MEASUREMENTS
|
| Frame Size >>> |
49cm |
53cm |
56cm |
59cm |
62cm |
ST (C-T):
Inches / mm
|
19.3 / 490.0 |
20.9 / 530.0 |
22.0 / 560.0 |
23.2 / 590.0 |
24.4 / 620.0 |
TT (C-C):
Inches / mm
|
20.7 / 526.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
TT (Effec.):
Inches / mm
|
20.8 / 529.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
HT Angle:
degrees |
72.5° |
73.0° |
73.5° |
74.0° |
74.0° |
HT Length:
degrees |
3.3 / 83.0 |
4.3 / 109.0 |
5.4 / 136.0 |
6.4 / 163.0 |
7.7 / 196.0 |
ST Angle:
degrees |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
BB Drop:
Inches / mm |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
CS Length:
Inches / mm |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
Wheel Base:
Inches / mm |
38.0 / 965.7 |
38.1 / 966.6 |
38.5 / 978.6 |
38.9 / 987.6 |
39.7 / 1009.1 |
S.O. Height*:
Inches / mm |
29.5 / 748.5 |
30.7 / 780.5 |
31.8 / 807.9 |
32.9 / 835.2 |
34.1 / 865.3 |
Fork Length:
Inches / mm |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
Fork Rake:
Inches /
mm |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
| *Measurements from bikes with 700c x 28 tire taken from to middle of the top tube to the ground |
Questions about Sizing? Email bd4salesteam@aol.com
If you are between sizes, keep in mind the smaller one will have lower handlebars and more agile handling. The larger one will have higher handlebars but less straddle room. Your personal preferences will determine your size. The final choice is up to you. |
