Sizing Guide | Specs | | Geometry Sizing Chart
This
bike comes 90%
assembled. If you don't feel confident working on your bike, we suggest
you take it to a local bike shop for final assembly
& safety checks. How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit |
FACTORY DIRECT SALE PRICE $799.95 (List

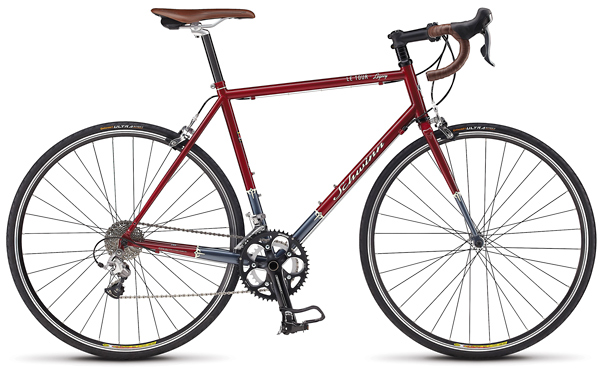

$1199) Crafted from Reynolds 520 Cro-Moly steel frame with N'Gauged Gold Label Cro-Moly steel fork. Schwinn Bio-tuned Saddle with Globe system smoothes out the road. Shimano 105, 10-speed drivetrain (20 gears total) with FSA Compact and Mavic rim wheel set. Schwinn ergonomic bars. Why is the Price So Low?
Best
way to pick size; get a frame you can clear
standover by at least 1 inch |
Frame |
Reynolds 520 Chro-moly steel with Bio-Tuned Ergonomic geometry |
Fork |
Schwinn N'Gauged Gold Label Chromoly steel with forged dropouts |
Derailleurs |
Shimano 105 rear / 105 front, for 10 speed |
Shifters |
Shimano 105 |
Brake Calipers / Levers |
Tektro R358, Forged Polished Aluminum Dual-Pivot Calipers / Shimano 105 STI |
Hubs |
KT Alloy road sealed mechanism w/QR, polished bearing race |
Rims |
Mavic CXP 22 Double-wall alloy, 32 hole |
Crank |
FSA Gossamer Compact Crank, 50/34T / FSA Omega EXO cartridge |
Cassette/Chain |
Shimano 105, 10 speed 12-25T / Narrow 10spd |
Saddle |
Schwinn Bio-Tuned with Globe system |
Seatpost |
Road Tuned Black Label Carbon with forged alloy head |
Stem | Road Tuned Threadless, 1.125 Steerer |
Handlebars |
Road Tuned 6000 series alloy ergonomic drop bar, Oversize 31.8mm |
Pedals |
Standard road with toe clip and strap |
Tires/Tubes | Continental Ultra Sport 700 x 25C / Presta valve tubes |
Color | As shown |
Sizes | S, M, L, XL, XLRG Geometry Sizing Chart |
This
bike comes approx.90%
assembled |
