Frame |
Oversized, Custom Formed TIG Welded 6061 Aluminum Front Triangle with Hydroformed tubes.
Rear Triangle with replaceable rear derailleur hanger |
Suspension Fork |
SunTour XCT V3 long
travel, preload, advanced LOCKOUT |
Rear Suspension |
N/A |
Crankset |
SunTour XCT V3, aluminum arms, 170mm,
Powershift Rings 22/32/42T |
Bottom
Bracket |
Sealed
Cartridge Unit, square taper |
Pedals |
Beartrap MTB with metal
cage |
Front
Derailleur |
Shimano Alivio |
Rear
Derailleur |
Shimano Deore |
Shifters |
Shimano SL-M360, Rapid-Fire STI Triggershift Pods |
Cassette/Freewheel |
SHIMANO MegaRange 8 speed CS-HG308 11-34T-8 |
Chain |
Narrow 8 Speed |
Hubs |
Formula Forged
Aluminum
Disc w/Q.R. and debris sealed ball bearings |
Spokes |
Stainless
Steel |
Rims |
Maddux DX221, double wall 6061 T6 aluminum, Black finish |
Tires |
Kenda multi-tread 26x2.1 inch |
Brakes |
Tektro Novela mechanical disc 160mm rotors |
Brake Levers |
Tektro MT2.1 Mountain Aluminum |
Headset |
Cane Creek VP-A71 BLACK Threadless 1.125 inch, contact sealed ball bearing |
Handlebar |
20° rise Aluminum |
Stem |
Comp Aluminum Threadless
for 1.125 inch |
Tape/Grip |
Kraton
Black dual compound |
Saddle |
WTB
Speed V Sport SE with LoveChannel |
Seat
Post |
Aluminum alloy MicroAdjust, 27.2mm |
Seat Clamp |
Alloy
Q.R. |
Sizes |
Sizing Chart
(approx. sizing - please check against bikes you have ridden to make your final choice) |
Colors |

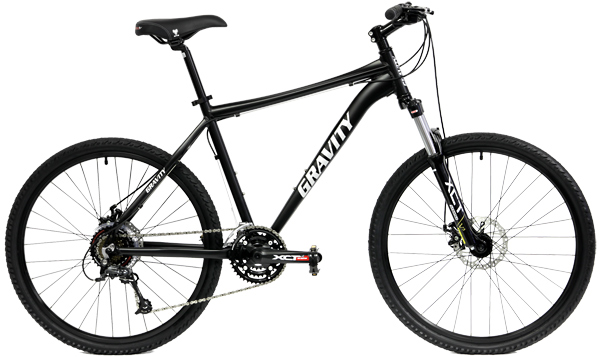

MatteBlack (as shown) |
Our
low price is $429.95 Compare at $1100+
Bikes come up to 90 percent assembled.
We suggest you take it to your local bike shop for final assembly
& safety checks. |
