Frame

Hybrid HM Carbon Fiber - Structurally optimized one-piece modular Monocoque main triangle, Reinforced bottom bracket and chainstays for power transfer, 2xH2O bottle mounts, replaceable derailleur hanger, Approx Frame weight = 2.42lbs

Fork

Dedicated Carbon Fiber fork with 1.125 inch aluminum steerer tube, co-engineered with the frame for balanced handling feel and precision

Derailleurs

SRAM Red, 10 Speed (20 gears total) rear and SRAM Red, brazeon mount front

Shifters

SRAM Red, 10 Speed DoubleTap (20 gears total, integrated brake + shift levers)

Brakes

SRAM Red, Dual Pivot
NOTE: Special Clearance Priced Kestrels from the land of OZ.
Left brake lever brakes the rear, right lever brakes the front. Once you get the bike, you can switch it back yourself if you prefer.

Hubs

Mavic Ksyrium SL Precision Bearing Black Anodized with QRM bearings

Rims

Mavic Ksyrium SL Aluminum with UBControl brake surface

Crank

SRAM Red, Carbon fiber arms, 53/39T Aluminum rings

BottomBracket

SRAM Red, External Sealed Precision Bearing

Cassette/chain

SRAM Red OG1090, 10-Speed Cassette 11-23T
WIPPERMAN 10S8 10 Speed chain

Saddle

SAN MARCO ZONCOLON

Seatpost

Kestrel RT Carbon fiber (aero profile)

Stem

FSA OS99 CARBON, 31.8 clamp, 1.125 inch steerer
(90/100/110 per Factory Specs - NO Customizing prior to shipment -buy a longer or shorter one at www.bikeisland.com and get free shipping)

Headset

FSA ORBIT Z CARBON, Black Sealed Cartridge Bearing Integrated,1.125 inch steerer

Handlebars

KESTREL EMS PRO (40/42/44 Proportional Sized to Factory Specs - NoChoice - check out www.bikeisland.com if you want to buy a wider or narrower bar) SPECIAL DEAL click HERE for near wholesale price on Super Light Full Carbon Fiber handlebars

Pedals

No Pedals included - buy some at www.bikeisland.com and get free shipping too

Tires VITTORIA OPEN CORSA CX 700x23c kevlar bead, presta valve tubes  (Max 120psi)

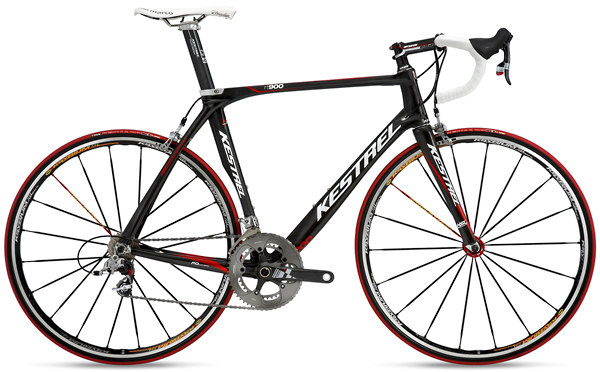

Color Red+White+Carbon Fiber Weave under clear coat (as shown)
Sizes 48cm, 51cm, 53 cm, 55 cm, 57 cm, 59 cm Geometry Sizing Chart

Bikes come up to 90 percent assembled. How much Assembly? CLICK HERE for sample assembly instructions and videos
CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
