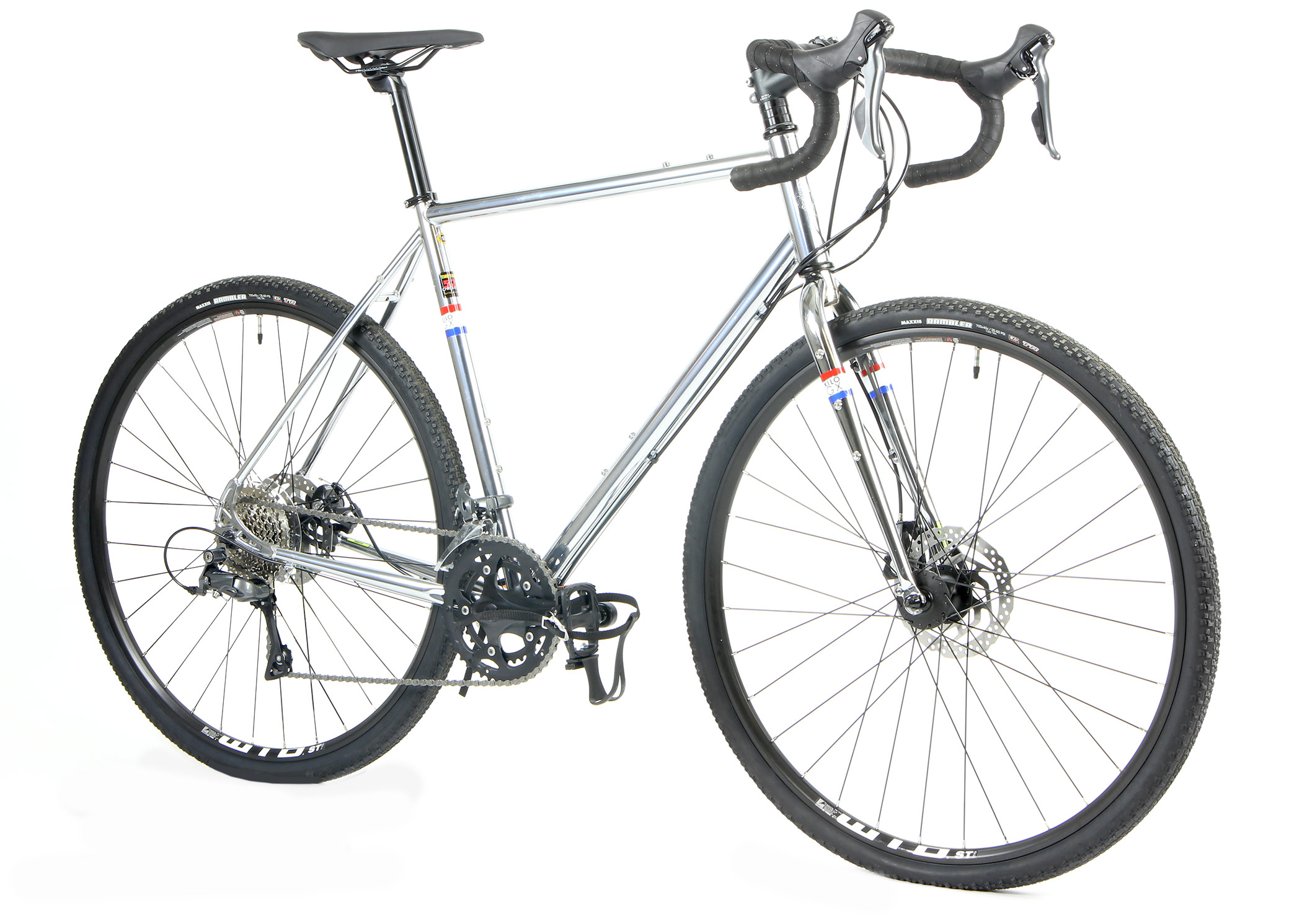

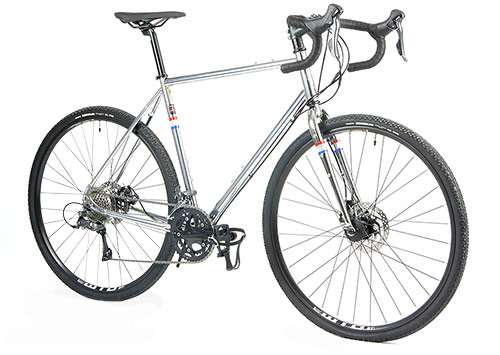

StealthSuperDark (click for large pic) NOTE: FORKS Upgraded to Lighter/Stronger UNICrown with Wide Tire Clearance (not lugged) |

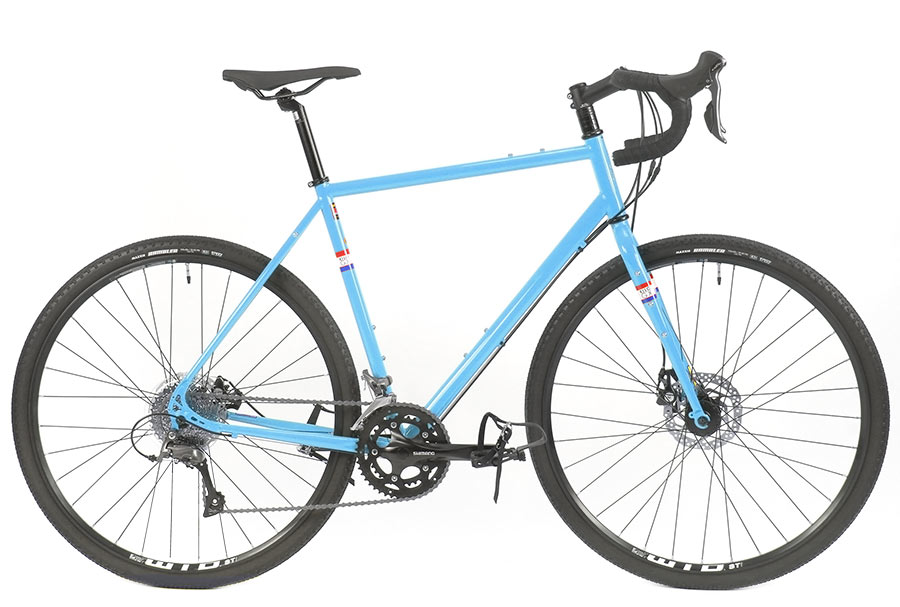

Blue |
Orange |
Click For: Customer Reviews and Videos | Specs | Sizing Guide | Geometry
Share this: | Twitter this: | More: |
Disc Brake, Reynolds 520, Shimano Claris, Wide Tire, Gravel, DropBar Bikes |
|
Bikes come up to 90 percent assembled. Assembly is Easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks. |
|
Frame
Mercier Custom Butted and Tapered Reynolds 520 Cromoly, Rear Rack brazeons/fender eyelet Fork Mercier Custom Drawn Butted and Tapered 4130 Cromoly 1.125inch steerer with UNICrown, Wide Tires Fit (Fits up to 50x700c tires/ 1.95"x29") Not Lugged as shown Headset FSA Threadless 1.125" Crankset Shimano Claris 46/34T: 49/53cm x170L / 56/59/62cm x175L, 2x8sp, Black Bottom Bracket Sealed Cartridge 103mmx68mm Square Taper Pedals 9/16 Boron Axle, Toe Clip And Strap, Black Wellgo Front Derailleur 28.6mm Shimano Claris Band-Type 34.9mm W/28.6MM Adapter, For Double Rear Derailleur Shimano Claris 8spd RDR2000GS Shifters Shimano Claris 8spd Cog SHIMANO HG50 8-Spd, 11-34T Chain KMC Z8.3 1/2x3/32x112L Gray/Gray Hubs SHIMANO Deore, Disc Brake (6 Bolt), Black Spokes 14G 32X32 Spoke steel Black +Nipple 14mm Rims WTB ST i19 TCS 2.0 /700c 32 hole drilling, Disc Only, Black Anodized; FV drilled, Pinned Joint Black, (See FAQ for tubeless setup) Tires Maxxis 700x40C Rambler, 60tpi, Silkshield, Wire Bead Black Brakes TEKTRO Mira MD-C400 Black / Rotors Shimano ASMRT26S 160MMX160MM Brake Levers SHIMANO Claris Handlebar 6061 Aluminum, Bar Bore:26.0 400L ANO, Black Stem Aluminum, 7 deg , Ext-60mm w/o Logo ANO, Black, Threadless 1.125" Grip VELO BLACK 130mm Black Saddle Standard Road, Cromoly Rail Seat Post SL Micro Adjust Aluminum 27.2x250mm Gloss Black Seat Clamp Mercier seatpost clamp braze-on lug with steel bolt (6NM max torque) Sizes See Pull down Colors As shown Our low price is $699(paint) to $749(RealChrome) Compare at $1400+
Limited Stock - SAVE Almost 50% OFF + Free Shipping* to 48 states!
Kilo GX Geometry Chart (back to top of page: AtThisLInk)
HT and ST angles in Degrees Units in mm unless otherwise noted (+/-2) Note: Top Tubes slope Upwards to HT Dimension/Size 50cm 53cm 55cm 58cm 61cm A Top Tube Length 540
545 560
570 576 B Head Tube Length 125 146 160 180 200 C Seat Tube Angle 74 74 74 73 73 D Head Tube Angle 71.5 71.5 72 72.5 73 E BB Drop 65 65 65 65 65 F Chain Stay 440 440 440 440 440 G Wheel Base 1026 1033 1034 1038 1052 H BB to Front Wheel 594 601 602 606 621 I Fork Length 410 410 410 410 410 J Fork Rake 45 45 45 45 45 K Seat Tube Total Length 500 530 550 580 610 L Standover (inches) 30.3 31.9 32.9 34 35.2
