Frame |
SuperRoad Disc Brake 700C Butted / Multi-shaped Advanced Heat Treated 3/2.5 Titanium,
2xH2O mounts, Wide Tires Fit, 68mm threaded BB Shell, Headtube TITANIUM UPPER 1-1/8"/LOWER 1.5" TAPER (46x42/55x52.1mm) L: 50/53/55/58/61CM=125/145/160/180/200mm, DROPOUTS(DO) TITANIUM VERTICAL W/REPLACEABLE HANGER, W/POST DISC MOUNT . O.L.N:135MM (142MM THRU-AXLE Equipped) Rear rack brazeons. |
Fork |
CARBON GRAVELFork ( UD WEAVE ) BLADE 700C, Steerer: CARBON 1-1/8" to 1.5" Taper ( I.D.:23.6) CROWN: 57mm, BLADE: CARBON STRAIGHT ( 25.7x56.9mm ) W/FLAT DISC MOUNT FOR 140/160 ROTOR .W/52mm OFFSET .W/FORGED DROPOUTS, M12xP1.5 FOR SHIMANO SM-AX720-100x12mm AXLE, Customers report Fork Fits most tires up to 700x45c (29x1.75in) |
Crankset |
SHIMANO R8000, ULTEGRA 11-SP, HOLLOWTECH 2, 50-34T
Crank 170/172.5/175mm for 50-53/55/58-61CM |
Bottom
Bracket |
SHIMANO outboard sealed bearings (68mm) KSMBBR60B |
Pedals |
WELLGO ALLOY SIL BODY/ALLOY SIL CAGE W/9/16" BORON-AXLE, W/BLK TOE CLIP, BLK STRAP |
Front
Derailleur |
SHIMANO FD-R8000, ULTEGRA, FOR 11-SPEED, DOWN-SWING, 31.8MM BAND |
Rear
Derailleur |
SHIMANO RD-R8000, ULTEGRA, GS 11-SPEED, TOP NORMAL SHADOW DESIGN, DIRECT ATTACHMENT, COMPATIBLE WITH LOW GEAR 28-34T FOR DOUBLE |
Shifters |
SHIMANO SL-RS700, FOR FLAT BAR ROAD 2x11-SPEED, RAPIDFIRE PLUS |
Cassette/Freewheel |
SHIMANO CASSETTE, CS-HG800-11, 11-SPEED, 11-13-15-17-19-21-23-25-27-30-34T |
Chain |
SHIMANO BICYCLE CHAIN, CN-HG701-11, FOR 11-SPEED |
Hubs |
F/HUB JTECH DISC FRONT HUB, 2 Sealed Bearings, POLISH ANO BLK, W/ 5-12mm for 12mm through QR, 14Gx32H,OL:100mm (NOTE: check for hub end caps which may stick to the plastic hub protectors/ do not discard)
F.HUB THRUAxle w/QR JTECH FRONT 12mm ANODIZED BLACK, L:M12xP1.5x121mm
R/HUB JTECH SHIMANO 11S COMPATIBLE, ALLOY DISC REAR HUB. 2 SEALED BEARINGS. POLISH ANODIZED BLK. W/ 12MM THRU HOLE 14*32H.OLN:142MM. D:44.1
R.HUB THRUAxle w/QR JTECH QR269, ANODIZED BLACK 12x142mm, L: M12xP1.75x 174mm |
Spokes | 14Gx64 PCS S.S. XD BLACK W/14MM BRASS NIPPLE |
Rims |
WTB Frequency Race i23 TCS 700c 32 hole drilling, Disc Only, Black Anodized; I-Beam Construction, 4D Drilling, PV drilled*See FAQ page for Tubeless system setup |
Tires |
CONTINENTAL Ultra Sport II 700x32C BLK TREAD BLK S/W 180TPI x 3 , WIREBead |
Brakes/Levers |
F/BRAKE SHIMANO DISC BL-RS600(L), BR-RS405(F), RESIN PAD, (FLAT MOUNT)
R/BRAKE SHIMANO DISC BL-RS600(R), BR-RS405(R) FOR 25MM RESIN PAD (FLAT MOUNT)
REAR DISCBRAKE ADAPTER SHIMANO MOUNT ADAPTER FOR ROAD DISC BRAKE MOUNT, SM-MA-R160D/D, FIXING BOLT X2, SNAP RETAINER X1, WASHER X2
SHIMANO ROTOR FOR DISC-BRAKE, SM-RT76, DEORE XT, S 160MM, 6-BOLT TYPE |
Handlebar |
RITCHEY MTN COMP FLAT (B/CENTER: 31.8mm), ALLOY(6061) FLAT H/BAR (5°) B/CENTER: 31.8mm. R/W:0/600mm. BB BLK |
Stem/ Headset |
RITCHEY STEM COMP 4-AXIS 84/6D (C:31.8)-28.6 ALLOY (6061), STEM.EXT: (6°) 90/100/110mm FOR 50-53 / 55 /58-61CM, C/S:31.8/28.6x42mm, BB BLK/ FSA NO.42E/ ACB Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm) W/TOP CAP W/15 mm Cone Spacer |
Tape/Grip |
Black CushionGrips |
Saddle |
RITCHEY COMP STREEM 132 Synthetic Leather, Nylon + GF Shell, Steel Rail |
Seat
Post |
RITCHEY COMP CARBON 2B W/ALLOY BB BLACK HEAD 27.2 X 350MM, UD MATT FINISH |
Seat
Clamp | Aluminum with bolt |

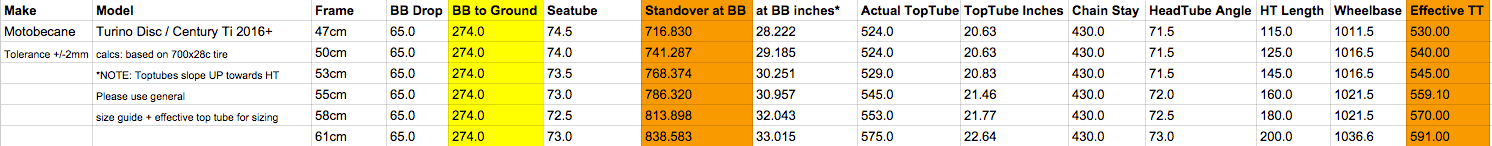

Sizes |
see pull down |
Colors |
As Shown |
Our
low price is $2499.95 Compare at $5900+
This
price INCLUDES Ground Ship to 48 States
Bikes come up to 90 percent assembled. How much Assembly? CLICK
HERE for sample assembly instructions and videos
CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit |
