Frame |

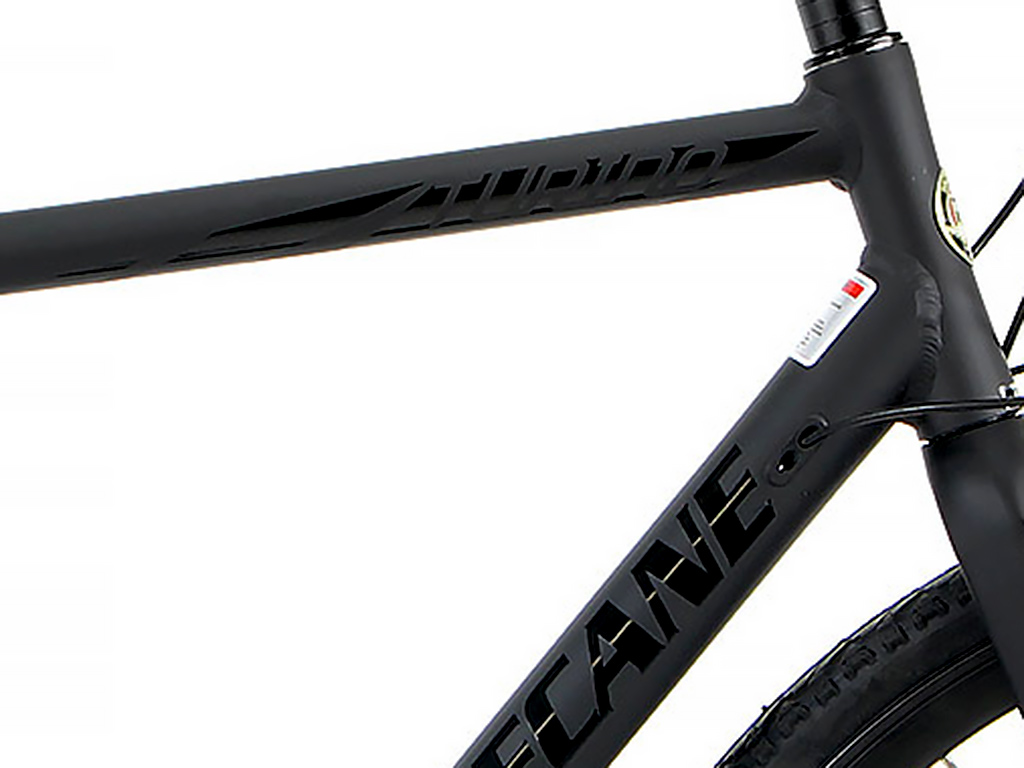

Features SLICK INTERNAL Cable and Stealth Dropper Post Routing! New Endurance Design HandCrafted
Aluminum, replaceable rear derailleur hanger, 2xH2O bosses.
HeadTube L: 47/50/53/55/58/61/63CM=115/125/145/160/180/200/210mm |
Fork |
700C CARBON ROAD/CROSS/GRAVEL FORK, STEERER: ALLOY( 1-1/8"), CROWN: 45mm, BLADE: CARBON STRAIGHT W/FLAT DISC MOUNT W/EYELET, OFFSET:45mm ( UD WEAVE ) Fits Most 700x45c Tires* (29x1.75inch) (*not guaranteed due to 3rd party tire variations) |
Crankset |

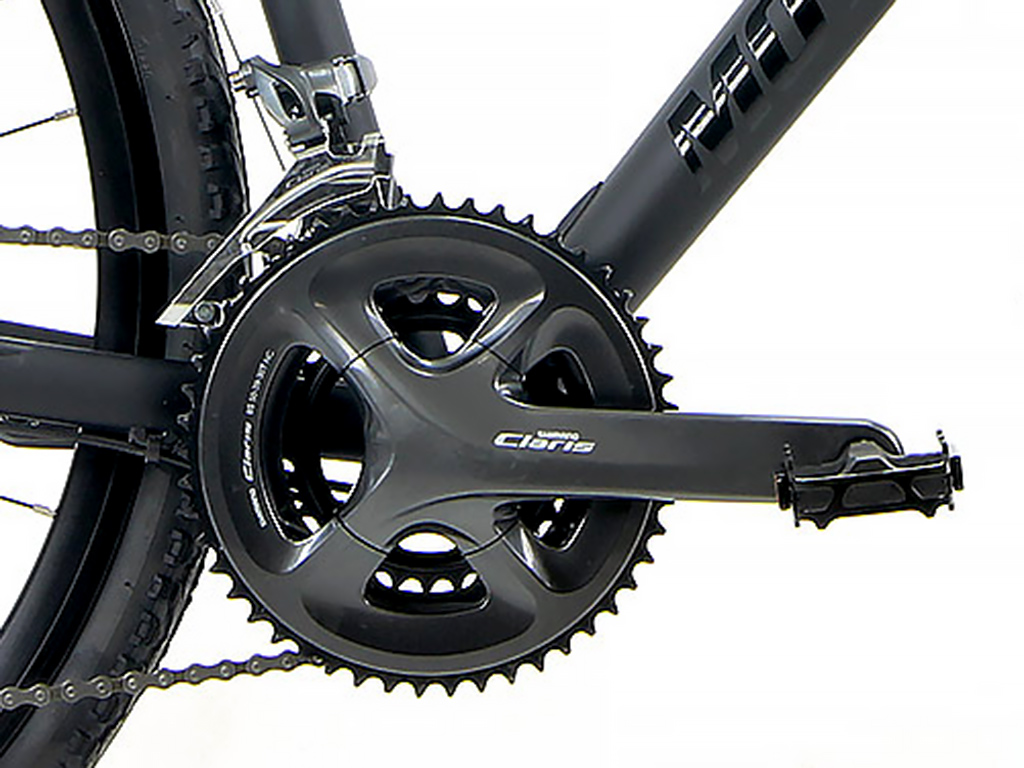

SHIMANO FC-R2030, CLARIS 3x8-SP, 50X39X30T, 170/175mm FOR 47-50 / 53-63cm |
Bottom
Bracket |
SHIMANO CARTRIDGE, AXLE BSA 68MM-121 |
Pedals |
RoadBike Pedal, W/9/16", BORON-AXLE |
Front
Derailleur |
SHIMANO FD-R2030, CLARIS, FOR REAR 8-SP, BAND-TYPE 34.9MM W/31.8MM ADAPTER, FOR TRIPLE |
Rear
Derailleur |
SHIMANO RD-R2000, CLARIS GS 3x8-SPEED |
Shifters |
SHIMANO SHIFT/BRAKE LEVER ST-R2030 CLARIS 3X8Speed (24 Gears) |
Cassette/Freewheel |
SHIMANO, CS-HG31, 8-SPEED, 11-13-15-17-20-23-26-34T |
Chain |
KMC NARROW CN 1/2x3/32"x112L, GY/GY |
Hubs |
FR JOYTECH 700C*32H ALLOY DISC:100mm, ANO BLK, CRMO M9 AXLE, ALLOY BK QR
RR JOYTECH 700C*32H ALLOY DISC:135mm, ANO BLK, CRMO M10 AXLE, ALLOY BK QR |
Spokes | 14Gx64 PCS S.S. XD BLACK W/14MM BRASS NIPPLE |
Rims |

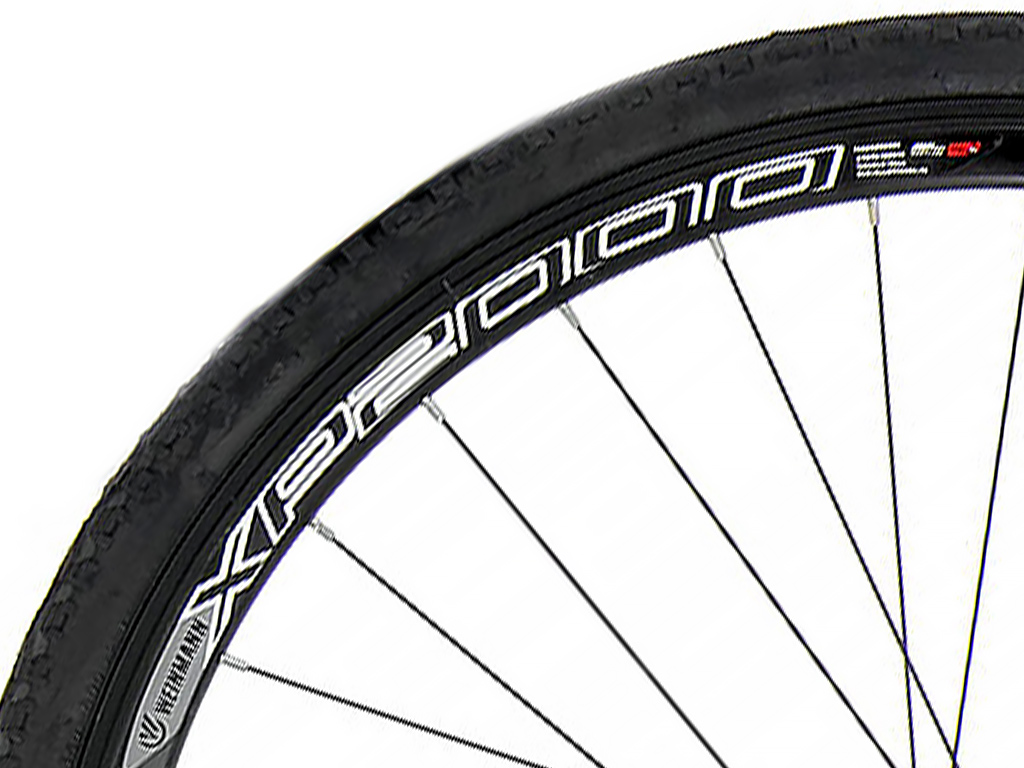

WEINMANN XP2000 ALLOY 700C H/W:30.0X19/24 PINNED TYPE W/O EYELET , BLACK ANOD.W/O CNC ,32H,W/FV |
Tires |
KENDA K176 700x28C ( 28x622 ) BK 22 TPI |
Brakes |

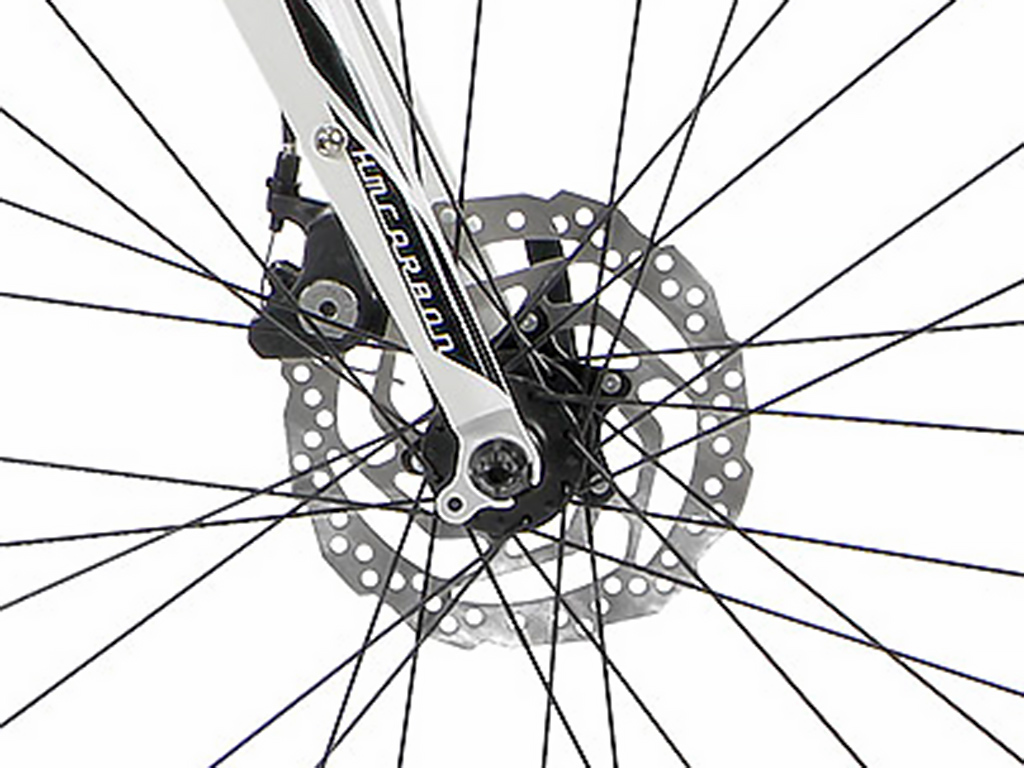

TEKTRO ROAD MECHANICAL DISC BRAKES, FLAT MOUNT W/ TR160-22 160mm ROTOR |
Brake
Levers |
SHIMANO INTEGRATED WITH ST-R2030 CLARIS |
Handlebar |
ROAD BAR (C:31.8) ALLOY W/TUNNEL BUILT IN TYPE B/CENTER:31.8mm 400/420/440mm FOR 47-53/ 55 /58-63cm,,D/R:138/100 mm,SS.A.BK |
Stem/ Headset |
ALLOY(6061) TIOGA-OS ,STEM.EXT:(-6°)90/100/110mm FOR 47-53 / 55 /58-63CM,C/S:31.8/28.6x37mm ,S.B.BLK / FSA NO.8D/DJ-1-1/8" INTEGRATED H/P , 45/45 ACB |
Tape/Grip |
Black gel
synthcork |
Saddle |
Road Racing with comfort channel |
Seat
Post |
6061 ALLOY SS.A.BK S/POST W/ALLOY ED BLK HEAD , 27.2 X 300MM |
Seat
Clamp | Aluminum with bolt |
Sizes |
see pull down |
Colors |
As Shown |
Our
low price is $799.95 Compare at $1799+
This
price INCLUDES Ground Ship to 48 States
Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit
If you don't feel confident working on your bike, we suggest
you take it to a local bike shop for final assembly
& safety checks. |
