*ALL BIKES FREE SHIP 48
|

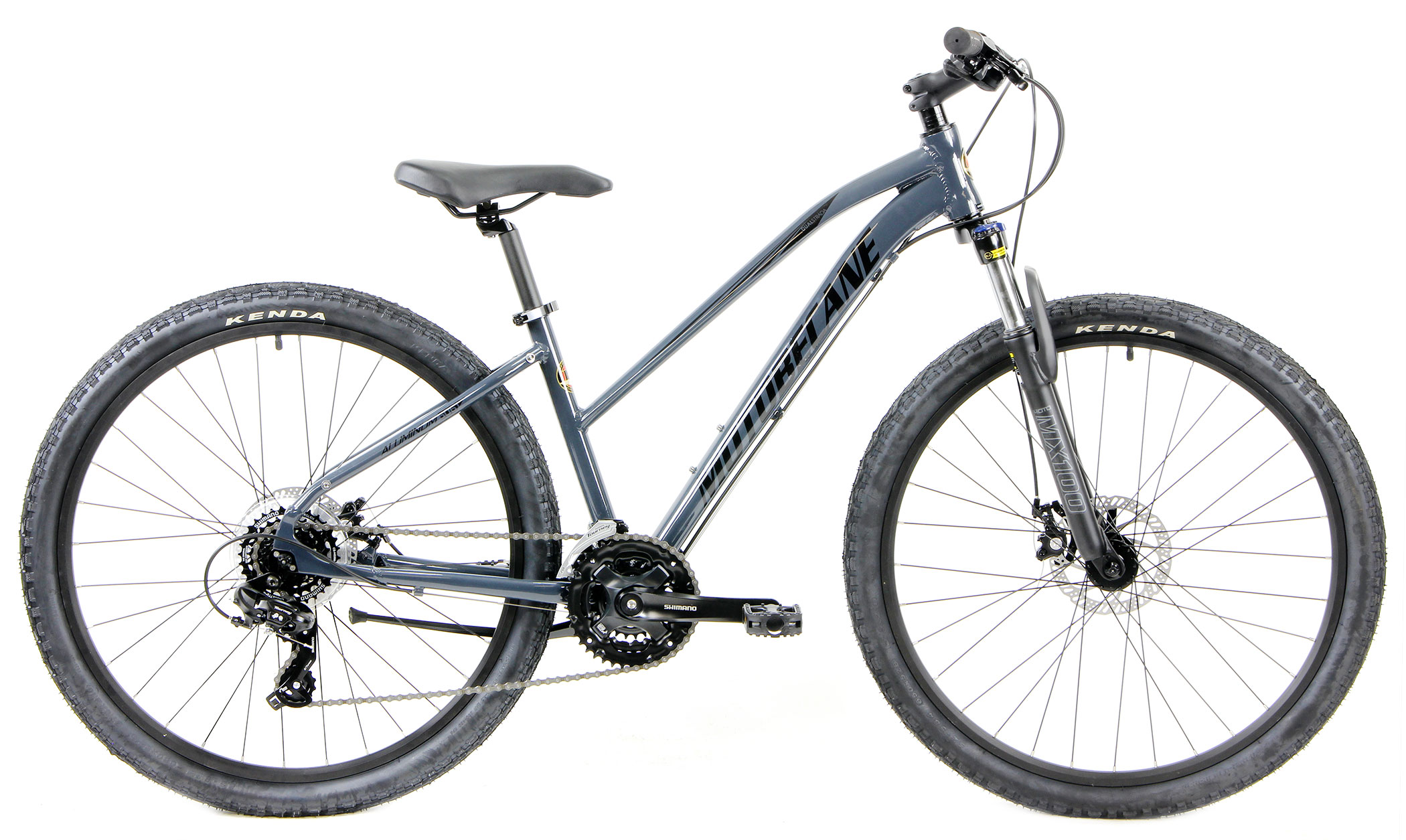

StepThru ST 27.5 Frame Design: More Straddle room with lowered top tube and 27.5 Tires StepThru TWO colors: Charcoal(glossgray) Larger pic ClickHere, Or OceanBlue Larger Pic ClickHere |
|
Click For: Sizing Chart | Specs | Geometry (NOTE: Lower standover with ~1" more straddle room due to 27.5 tires)
BREAKING NEWS: Bike prices will go up due to increases in parts cost and massive increase in freight charges GOOD NEWS: Order Now and lock in at that price even if our cost on bikes or transport rises. Lock in the Deal, Order Now. PRICE May Go Up Suddenly, Some parts may appear different if updated to updated versions at no extra cost |
This 2024 Model Has Fantastic Upgrades: |
SHIMANO 21 Speed INDEX |
Dual Strada ST Size Chart* Order Now, Limited Qtys. NOTE: Equipped with Powerful Disc Brakes. Plus LockOut Forks often seen on bikes costing hundreds more. Your Genuine SHIMANO 21 Speed INDEX Drive Train Bike Sale Price is Only $399+
Use pull-down above to select size/color Inventory Status shown at checkout |
We accept Visa/MC/Disc/Amex/PayPal
Price Includes Ground Shipping
to 48 United States (AK/PR/HI addtl charges) |
Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks. |
Frame Advanced Hydroformed 700C ALLOY 6061, 2xH2O mounts, replaceable rear derailleur hanger
clearance for up to 2.2" (most brands of tire)Fork/ Headset 27.5" SUSPENSION FORK, Alloy Crown, Advanced LockOut. ( MAX. TIRE : 2.2"* ) / VP- BLACK W/ALLOY BLACK TOP CAP Crankset SHIMANO FC-TY501 24T BKx34T BKx42T BKx175MM ALLOY BLACK CRANK
Bottom Bracket VP-BC73 CARTRIDGE, SQTaper Pedals Platform NEW SPEC 9/16" Boron Axle Front Derailleur SHIMANO FD-TY500 TOP PULL Rear Derailleur SHIMANO RD-TY300D BLACK CAGE Shifters SHIMANO SL-M315 21-SP BLACK Cassette/Chain 7-SPD, 11-34T / KMC Z 7Speed STEEL GY/GY 1/2x3/32"X112L Wheels 650Bx32H DH-18 ALLOY BLACK A/V.
F/HUB : FORMULA ALLOY BLACK W/QR.
R/HUB : FORMULA ALLOY BLACK W/QR.
SPOKE : 14G STEEL BLACK W/BRASS NIPPLE.Tires/ Tubes 27.5"x2.1 K-935 BLACK KENDA
Brakes TEKTRO ARIES DISC BRAKE W/160MM ROTOR Brake Levers TEKTRO Alloy Lever Handlebar Aluminum- W:720MMxR:20MMx6 DEGREES, ALLOY SAND BLACK Stem Aluminum EXT:90MMx10 DEGREES, ALLOY SAND BLACK Tape/Grip BLACK KRATON Saddle Hybrid CustomComfort BLACK PADDED Seat Post 6061 ALLOY SS.A.BK X 400MM Seat Clamp QR Lever, Aluminum Alloy Black Finish Sizes see pull down Colors as shown Our low price is $399.95 Compare at $1199+
Dual Strada Geometry Chart (back to top of page: AtThisLInk)
HT and ST angles in Degrees Units in mm unless otherwise noted (+/-2) Note: Top Tubes slope Upwards to HT Dimension/Size 16in 18in 20in 15in StepThru 19.5 StepThru A Effective Top Tube Length 586
597 608
585 600 B Head Tube Length 110 120 140 110 110 C Seat Tube Angle 71.5 71.5 70.5 70.5 70.5 D Head Tube Angle 71 71 71.5 71 71.5 E BB Drop 55 55 55 55 55 F Chain Stay 460 460 460 440 440 G Wheel Base 1074 1077 1080 1043 1053 H BB to Front Wheel 620 623 626 608 618 I Fork Length 490 490 490 490 490 J Fork Rake 51 51 51 51 51 K Seat Tube Total Length 406 457 508 390 495 L Standover (inches) 28.5 30.5 32.5 23.75* 27.9* * Special Notes *StepThru Standover rises rapidly toward head tube
