Full Hydroform ALU DropBar, Touring, Adventure, Gravel Road Bikes Online On Sale, Disc Brake Touring Bikes

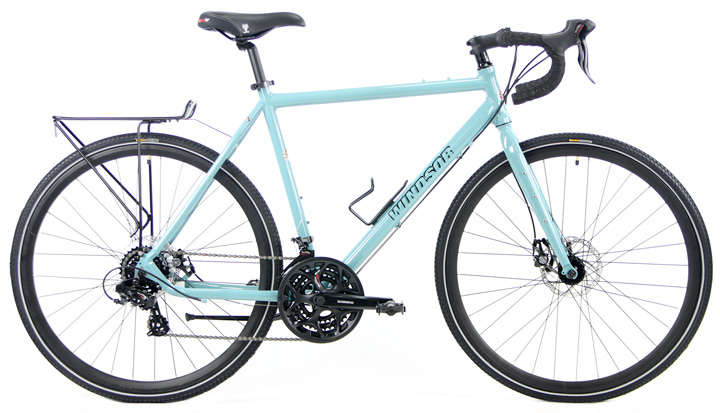

Windsor Tourist XTL

Hydroform ALU DiscBrake DropBar/Commuter Road, Shimano 21 Speed
NOTE: BONUS FREE Rear Rack / FREE Bottle Cage+ Kickstand

SALE $699

$1699

FAST FREE Delivery 48 USA* | 30 Day Money-Back Guarantee*

XTL LEVER UPGRADE (video below)
DropBar Tour/Commuter Design
Powerful Disc Brakes

Advanced Hydroform ALU
Fast AERO Rims
Reflective PunctureGuard Tires

Windsor Tourist XTL DropBar, Disc Brake Gravel/Touring Road Bike Size Chart | Between sizes? Size down for more crotch clearance
49cm - fits most 4'11" to 5'2"
52cm - fits most 5'3" to 5'5"
54cm - fits most 5'6" to 5'8"
56cm - fits most 5'9" to 5'11"
58cm - fits most 6' to 6'2"
61cm - fits most 6'2" to 6'4"
*approx. sizing - your final choice is up to personal preferences

Select Below then Click Cart to CheckOut

Selection Sold Out? Get Email Alerts Click Here

AK/PR/HI additional cost | LiveChat or Email for PO Box/APO/FPO Options/Costs | Electric Bikes Can't Ship to AK/PR/HI/APO

Bike Assembly is easy, most are up to 90% assembled.

Click For> Sample Assembly instructions and videos
If you don't feel confident working on it, we suggest taking it to a local bike shop for final assembly / safety checks.

Bikesdirect 5,000+ Reviews LiveChat Verified by Real Customers

Save Up to 60% Off* Windsor Tourist XTL, Disc Brake, Touring, Gravel, Commuter Road Bikes with Shimano Drivetrains PLUS XTL Brake Lever Upgrade (worth $120-$150)

INCLUDED XTL LEVER UPGRADE: WELL EQUIPPED with NEW XTL Brake Lever Technology For 2026: EXTRA Levers Mounted Left And Right Of Stem = Easier+Quicker Braking NORMALLY ~$120 to $150 UpCharge In Shops (See video, Below)

Compare to other brands similarly equipped Touring or Commuter / Gravel bikes of equal sale price. Theirs are less capable or DO NOT Have Powerful Disc Brakes or Aero Rims.

The Windsor Tourist XTL DropBar, Disc Brake, Gravel, Touring Road Bike is Extremely capable with a Touring Specific Design. Plus, smooth shifting Shimano Drivetrain. Sweet shifting Shimano is top rated and durable with a Fast AERO Rim Wheelset (~$500 Value) and powerful Powerful Disc Brake system

Tour/Commute Specific Features:
Trifecta Fork BrazeOns, Bento TopTube BrazeOns, Rear Rack Mounts, Bottle Cage BrazeOns

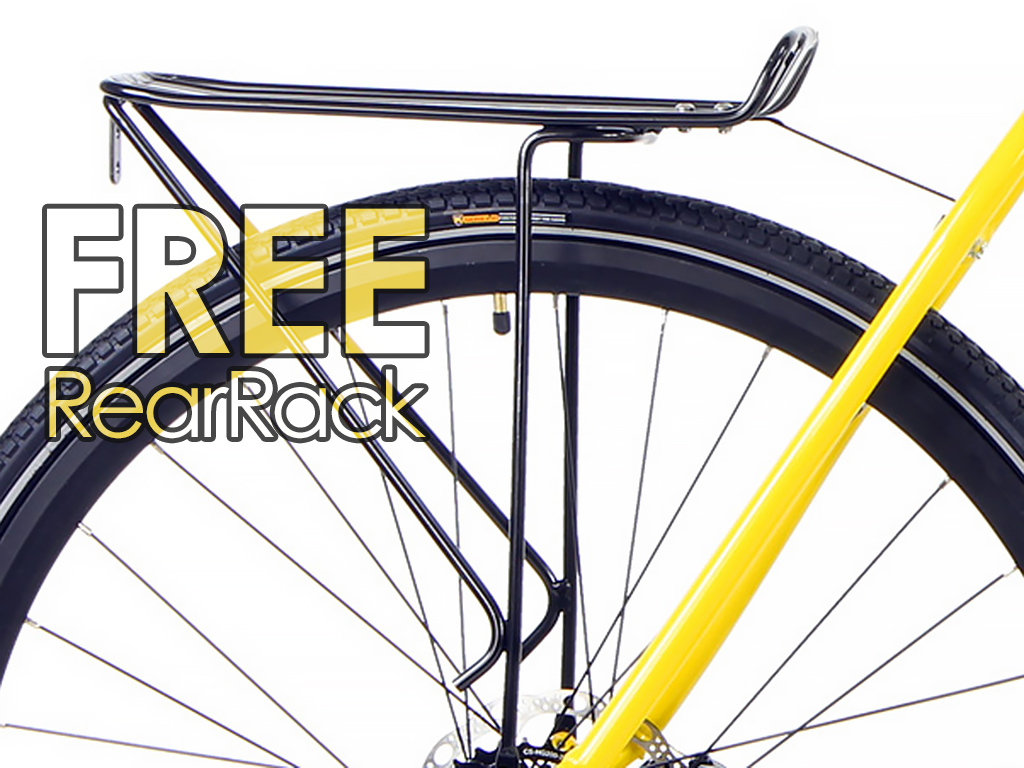

FREE BONUS ITEMS (limited time): Rear Cargo Rack, Bottle Cage, Kickstand

We were lucky to get these on a container before the tariffs. Customers tell us many other stores have already quietly raised prices. Others have been more upfront and added "Tariff Charge" Line Items onto invoices.

Its likely you'll never see deals this good again.

TRUSTED SELLER SINCE 1997

A+ RATED With BBB

Over A Million Happy Customers

NOTE: FREE BONUS ITEMS (limited time): Rear Cargo Rack, Bottle Cage, Kickstand

Well Designed and Proven - There are only a few good choices when buying a high grade touring bike Trek 520, Windsor Tourist XTL, Co-Motion Nor'Wester, Rivendell Atlantis, and so on. These bikes are all high grade touring specific bikes that have many features in common - including price tags well over $1200. Windsor's product engineers designed this bike for comfortable loaded commuting or touring. The angles of the light/strong Aluminum frame are relaxed for stability, the wheelbase is long, the clearances around the wheels sufficient for fat, sturdy tires up to 44c.

You will go further and faster in comfort because this bike is so comfy and capable for touring, commuting and more adventures.

Model	Windsor Tourist XTL	Surly Disc Trucker	Fuji DropBar Disc
Price	$699	$2099	$1699
Weight*	28.1 lbs	27.9 lbs	29.1 lbs
Note	*Weights can vary +/-5% due to size/production variables

Frame

Advanced ALUMINUM 700Cx49/52/54/56/58/61 CM, ALLOY 6061 FOR MAX42C TIRE T/T-35MM, S/T-31.8MM, D/T-44MM, With Special Hydroformed ALU RearStay Design: Shaped, tapered and engineered for strength and performance, Custom Bento Box top tube mount (Box not included)

Fork

CrMO 700C STRAIGHTBladed Fork W/3 SETS OF BRAZE-ONS (Trifecta)

Bar / Stem / Saddle / Seatpost

Handlebar DROPBAR XTL Model: Aluminum Alloy 31.8MM W:400MM (49~52CM) /420MM (54~56CM) /440MM(58~61CM) Stem DropBar Model: ALLOY 6061 EXT:60MM(49-52)/75MM(54-56)/90MM(58-61)x-6 Degrees Tape/Grip DropBar Model: SynthCork Wrap Saddle Due to Supply Chain Updates: VELO OR WTB SPEED V SPORT SE, BLACK PADDED Seat Post 6061 ALLOY SS.A.BK S/POST W/ALLOY ED BLK HEAD, 27.2 X 400MM (insert seatpost min 2 inches below lowest top tube weld / maintain clamp collar tightness)

Rear Shock

n/a (does not apply)

Shifters / Derailleurs

Front Derailleur SHIMANO FD-TY510T / Rear Derailleur SHIMANO RD-TY500D BLACK / Shifters FB Model: SHIMANO ST-EF41 21-SP / DropBar Model: SHIMANO ST-A073LIX/ST-A070RIX 21-SPD

Chain / Gears

Gears SHIMANO CS-HG20 12-32T-7spd / Chain KMC Z-7 GY/BR

Cranks / Bottom Bracket

Crankset SHIMANO FC-A073 30/39/50T 170MM ALLOY BLACK / Bottom Bracket VP-BC73 Cartridge Sealed, JIS Square Spindle

Brakes

TEKTRO DISC BRAKE W/160MM ROTOR

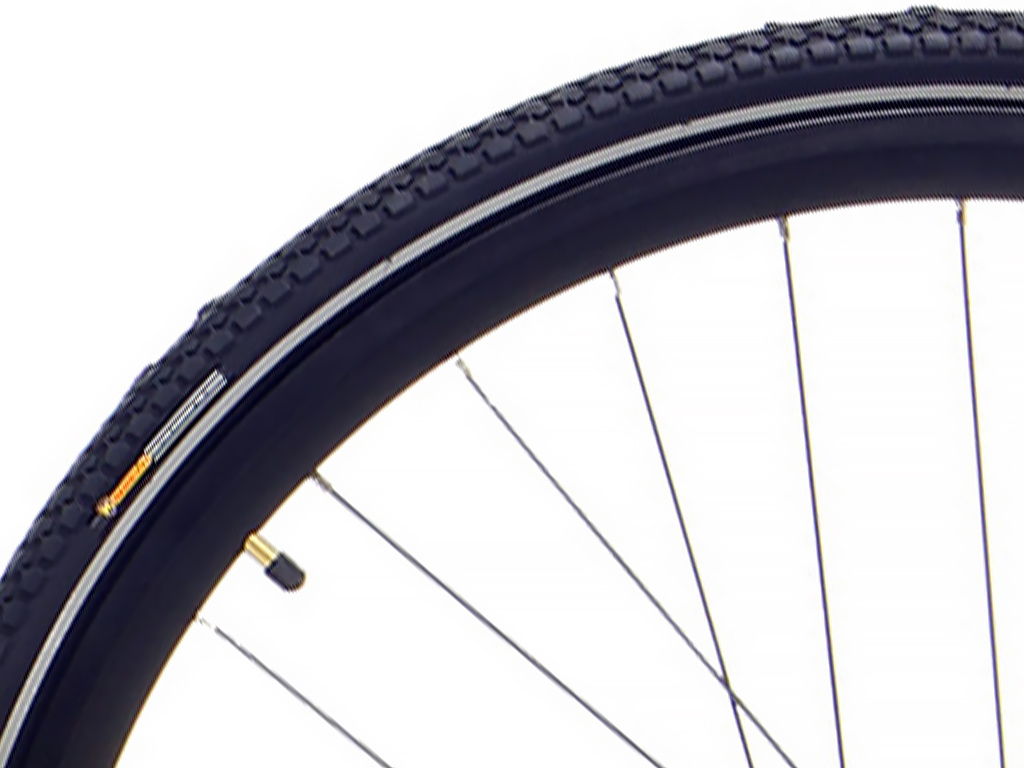

Wheels / Tires

Wheelset RIM : 700x14Gx32H HJC DA-300D DOUBLE WALL, ALLOY BLACK F/HUB : FORMULA DC19 ALLOY BLACK W/QR. R/HUB : FORMULA DC27A ALLOY BLACK W/QR. SPOKE : 14G STEEL BLACK W/BRASS NIPPLE. Tires Due to Supply Chain Updates: Alternate Tire or Kenda 700x38C BLACK REFLECTIVE SideWall And PUNCTUREGUARD K-184 A/V

Motor/Battery/Controller

n/a (does not apply)

Weight / Widest Tire

Approx. 28.1 lbs / Max Tire width approx 700x44c (not guaranteed due to mfg variance)

Extras

NOTE: Pedals PP BLACK BODY, STEEL BLACK CAGE, 9/16 axle

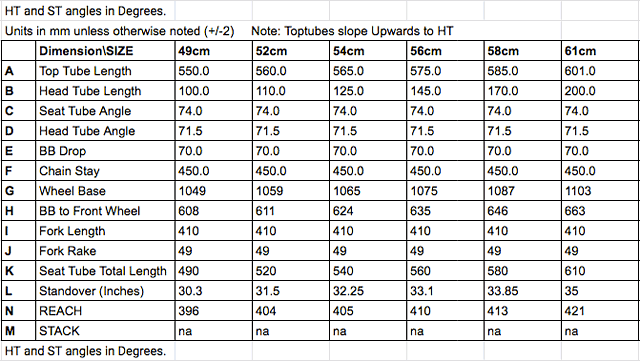

Size	49	52	54	56	58	61
Head Tube Angle	71.5	71.5	71.5	71.5	71.5	71.5
Seat Tube Angle	74	74	74	74	74	74
Head Tube Length (mm)	100	110	125	145	170	200
Effective Top Tube (mm)	550	560	565	575	585	601
Chainstay (mm)	450	450	450	450	450	450
Standover (inch)	30.3	31.5	32.25	33.1	33.8	35

Over a Million Customers Love Bikesdirect.com

Features NEW XTL Technology For 2026: Click the Video Below to Play
