Windsor Trail FS 27 COMP
Powerful Shimano Hydraulic Disc Brake Equipped 27.5 Wheeled Full Suspension Mountain Bikes with SRAM/Shimano 24 Speeds

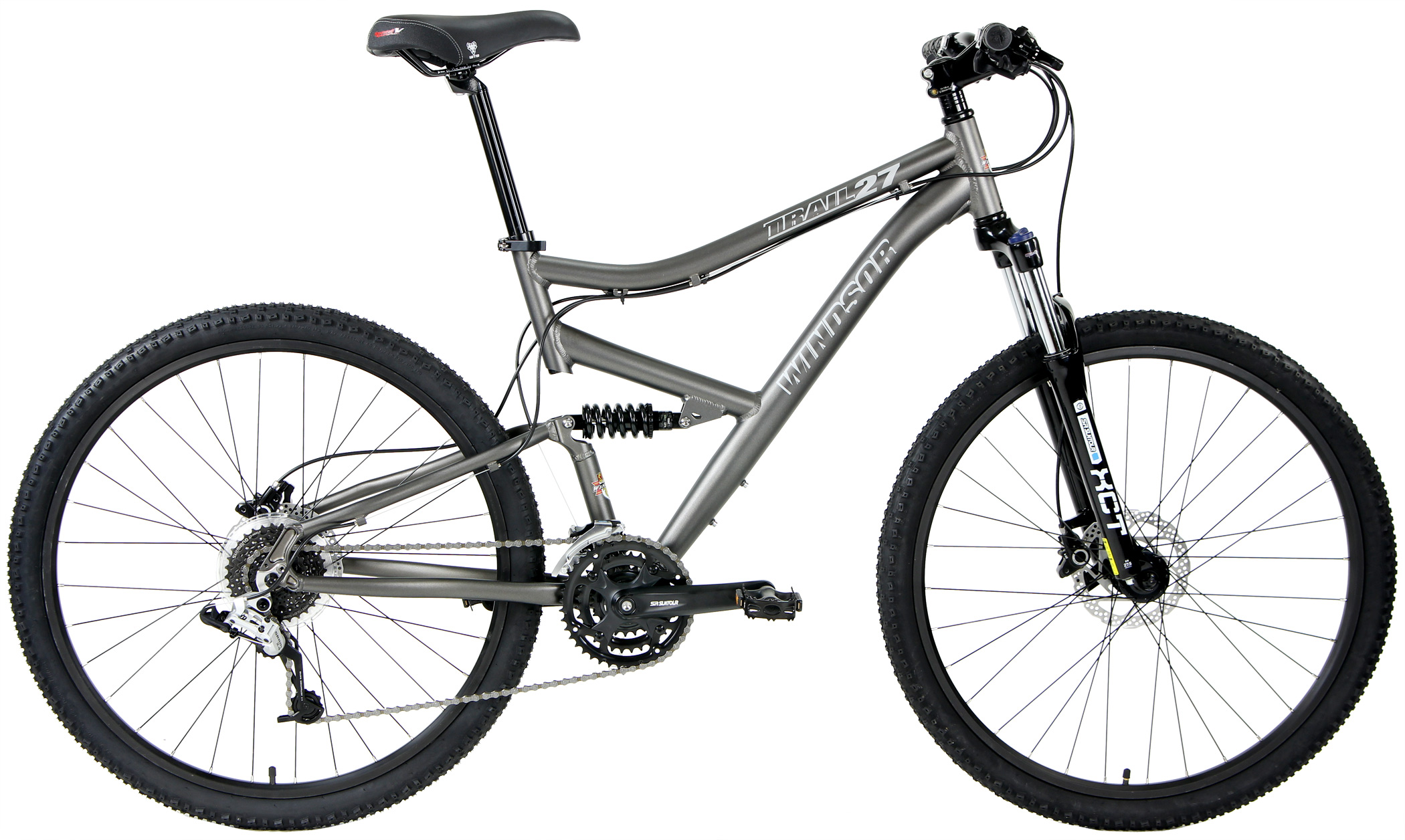

Click to see enlarged photo

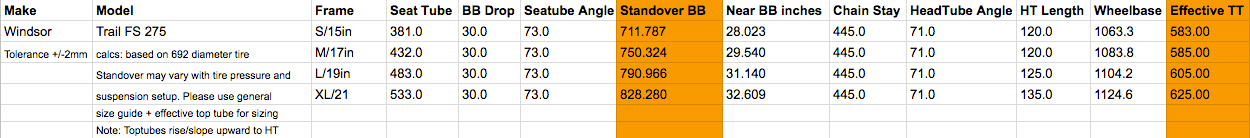

Click For: Specs | Sizing Chart | Geometry

These bicycles are extremely popular and will sell out fast

If your size sold out, join the newsletter at www.bikesdirect.com/deals to be notified when more are available

SRAM/Shimano 24Spd Full Suspension
Hydraulic Disc Brake 27.5 Mountain Bikes
2019 Windsor Trail FS 27 COMP
CYBER SALE EVENT
PRICE NOT APPLICABLE TO PREVIOUS ORDERS
ONLY $449.95 (Compare $1295)

Powerful Hydraulic Disc Brakes
Best of Both Worlds 27.5" Wheels
Advanced LockOut Suntour Forks
Coil-Over Rear Shock +MTB Tires
Save up to 60% Off List Prices
Buy Factory Direct from Bikesdirect

Compare to $1295 Giant, Trek or Specialized Full Suspension 27.5 Mountain Bikes

Use pull-down below to select size, color Stock Status shown at checkout
CYBER SALE EVENT
PRICE may go up soon, Shop Now:

We accept Visa/MC/Disc/Amex. PayPal is optional

Price Includes Ground Shipping
to 48 United States
(5 to 7 Day Delivery) (AK/PR/HI addtl charges)
(Email us for Delivery to PO Box/APO/FPO)

Follow BikesDirect On FaceBook

Pay with US Issued Visa, MC, Disc, AMEX Cards. Paypal Is Optional

Assembly Information

Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. View: His video HERE. How much Assembly? Click For: Sample Assembly instructions and videos CLICK for: Special price on the full Video DVD/CD and Folding Mini ToolKit If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks.

INCREDIBLE DEAL - NOW ONLY $449.95!

High end Proven performance without breaking the bank. Thousands of full suspension mountain bikes have used this proven suspension design. Lower maintenance than multi-link systems and more durable as well.

Great Part Specs
The awesome parts spec includes the advanced LOCKOut Suntour Adjustable long travel suspension forks. Quality SRAM / Shimano derailleurs with a super comfy WTB saddle. Very well equipped with Sure-stopping with powerful Shimano Hydraulic Disc brakes and superior traction with knobby Offroad Tires - who needs more?

Sizing Guide
15 inch = Sml fits* up to 5'7"
17 inch = Med fits* up to 5'9"
19 inch = Lr fits* up to 6'1
21 inch = XLrg fits* 6'2" and taller
(*approx. sizing - your final choice is up to personal preferences)
This is a general guide. Between sizes? Size down for lower handlebars, more straddle clearance, short arms/legs/torso. If you size up, you may touch when straddling. Size up for taller handlebars, long arms/legs/torso.
Sizing is a personal preference, the final choice is up to you

Frame	6061 Aluminum Trail Tuned 27.5 Inch Geometry with replaceable rear derailleur hanger and Optimum profile Aluminum downtube with reinforced downtube gusset.
Fork /Rear Shock	Advanced LockOut 27.5" SUSPENSION FORK, SUNTOUR SF13-XCT-HLO-DS ALLOY BLACK CROWN with adjustable preload (Disc Brake post mounts) / KINDSHOCK KS-260 Coil Over+Preload Adjustable cartridge
Crankset	SUNTOUR CW13-XCC-T202PB 22T BKx32T BKx42T BKx175MM ALLOY BLACK CRANK
Bottom Bracket	Sealed Cartridge SUNTOUR BB8-XCT-SQS SQUARE
Pedals	ATB Beartrap BLACK PLASTIC BODY W/STEEL BLACK CAGE
Front Derailleur	SHIMANO FD-M310M6 TOP PULL
Rear Derailleur	SRAM RD-X4-A1 SILVER CAGE
Shifters	SRAM X4 24-SP BLACK (24 speeds total)
Cassette	SHIMANO CS-HG318 11-32T-8
Chain	KMC Z-72 STEEL
Hubs	F/HUB : FORMULA DC19 ALLOY BLACK W/QR. R/HUB : FORMULA DC25 ALLOY BLACK W/QR.
Spokes	14G STEEL BLACK W/BRASS NIPPLE
Rims	27.5 / 650Bx32H DH18, Disc Specific Double Wall Aluminum Black Anodized
Tires	27.5x2.1 MTB BLACKwall, Schraeder Valve
Brakes	SHIMANO Hydraulic Disc Brakes BR-M355 BLACK/BL-M355 BLACK/SM-RT56 160MM ROTOR
Brake Levers	SHIMANO Hydraulic
Headset	1 1/8 Ahead VP-A71 BLACK W/M-1D ALLOY BLACK
Handlebar	MTB-AL- W:620MMxR:30MMx6 DEGREES, ALLOY BLACK Aluminum Riser
Stem	Windsor EXT:60MMx10 DEGREES, ALLOY BLACK Threadless Aluminum
Tape/Grip	WTB Dual Compound
Saddle	WTB Speed V
Seat Post	Windsor Aluminum Micro-Adjust 300MM, ALLOY BLACK
Seat Clamp	Alloy w/QR
Sizes	see pull down
Colors	see pull down
Our low price is $449.95 Compare at $1295 CYBER SALE EVENT PRICE NOT APPLICABLE TO PREVIOUS ORDERS Bikes come up to 90 percent assembled. How much Assembly? CLICK HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
